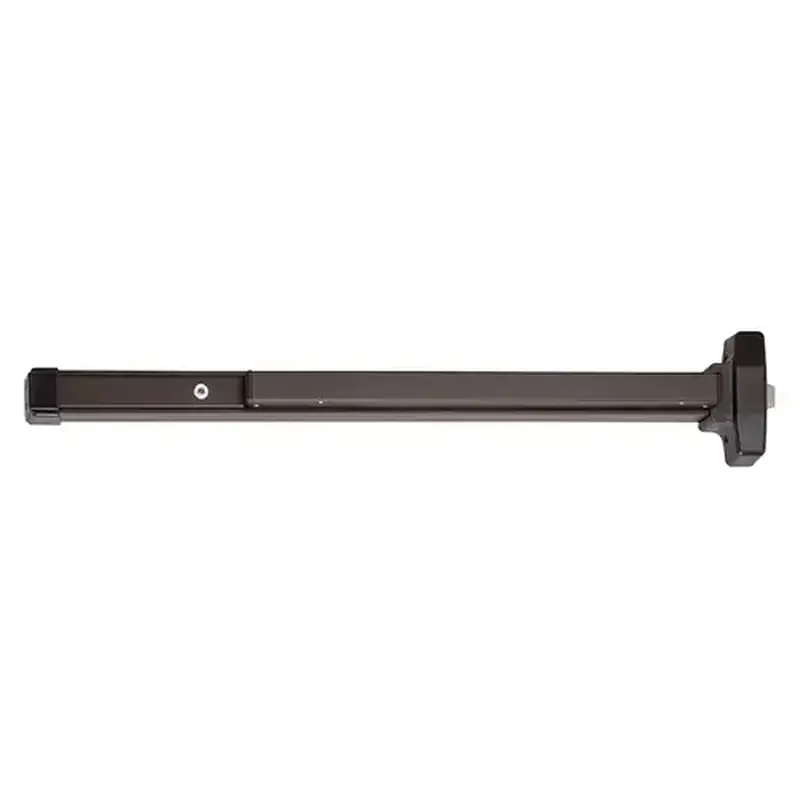

Von Duprin CXA9957L-BE-18-F 4 643E R RG Delayed Egress Exit Device Aged Bronze

Details

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 3913/16″ (1011 mm)
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral 3 13/16″ (97 mm) Pushbar depressed 3 1/16″ (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw Deadlocking rim bolt, 3 /4″ (19mm) throw
• Door undercut: 1 /4″ (7mm) recommended
• Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Trim Design

18-Lever

Door Height

84 In.

Mechanical Function

Lever Passage

Color

Aged Bronze

Physical Appearance

Wide Stile Pushpad

Hand

RHR

Grade

Grade 1

Fire Rated

Yes {Variable}

Special Marks

Fire rated 3 Hours {A}

Device Type

3 Point

Strike Bottom

304L

Mechanical Options

Fire Rated Device

Package Qty

1

Door Width

34 In. – 48 In.

Includes Trim

Yes

Device Length

48 In.

Door Thickness

1 3/4 In. – 2 1/4 In.

Strike Top

299F (2)

Trim Type

Passage Lever

Design A

18 Lever

Trim Part No.

996L-BE-R/V

Color Code

643E/US11E

Base Material

Steel

Minimum Stile Size

Wide

Door Material

Metal or Wood

Origin

USA

BAA Qualified

Yes

Package Height

10.5

Package Length

49

Package Volume

2572.5

Package Width

5
