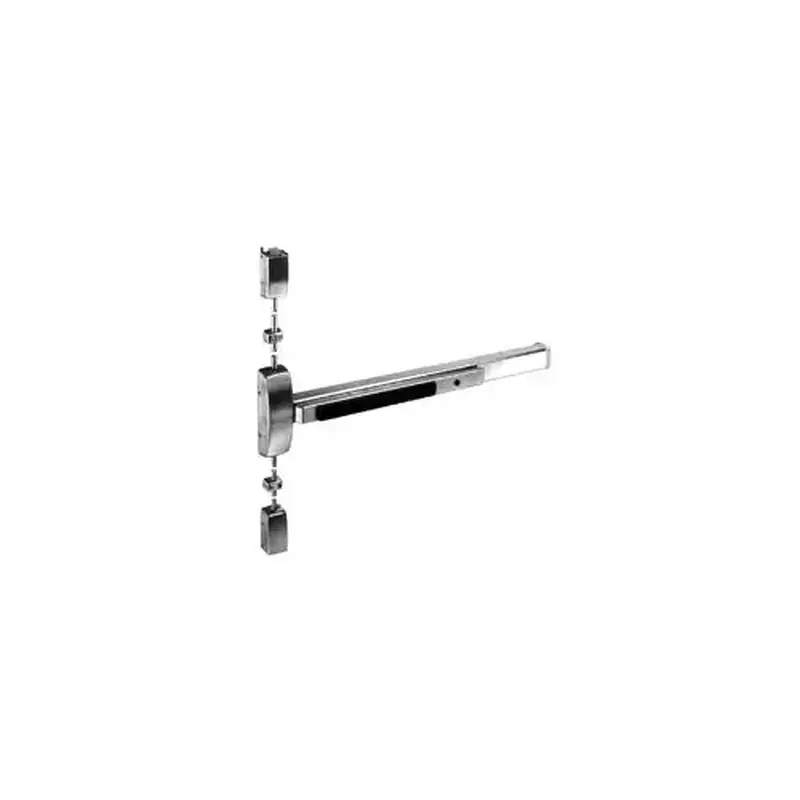

Sargent 12-8713-F-32D-RHR 80 Series 8713 Vertical Rod Exit Device

Details

Application

Single and Double Doors

Length

3 Foot Device

Hand

Right Hand Reverse

Handing

Right Hand Reverse

Warranty

5 Years

Color Code

630/US32D

Function

Classroom-Less Trim

Device Length

36 Inch (3 Foot)

Stile

Wide Stile

Door Height

7 Foot (84 Inches)

Fire Rated

Yes

Finish Description

Satin Stainless Steel

Device Type

Surface Vertical Rod Device

ADA Compliant

No

Finish Family

Satin Stainless Steel

Standards

ANSI/BHMA A156.3 – Grade 1; UL10C (Fire) and UL305 (Panic) Listed

Stile Width

With Trim 4-1/2 Inch; Without Trim 3-1/2 Inch

Center Case Dimensions

8-3/8″ x 2-5/8″

Device Bar Projection

3″ Pushbar Neutral (76mm); 2-1/8″ Pushbar Depressed (54mm)

Device Rating

Fire Exit Hardware

For Door Height

7 Foot

For Door Thickness

1-3/4″ to 2-1/4″

Function Family

Classroom

For Door Width

33″ to 36″

Features

Two Point Latching (Top and Bottom With Adjustability Through Center Case); Standard Bottom Latch Compatible With Latch Track Thresholds

Product Type

Exit Device

Series

8700 Pushpad

Door Material

Wood or Metal

Manufacturer Parent

Assa Abloy

Sub-Series

Sargent-12-8713-F-RHR
