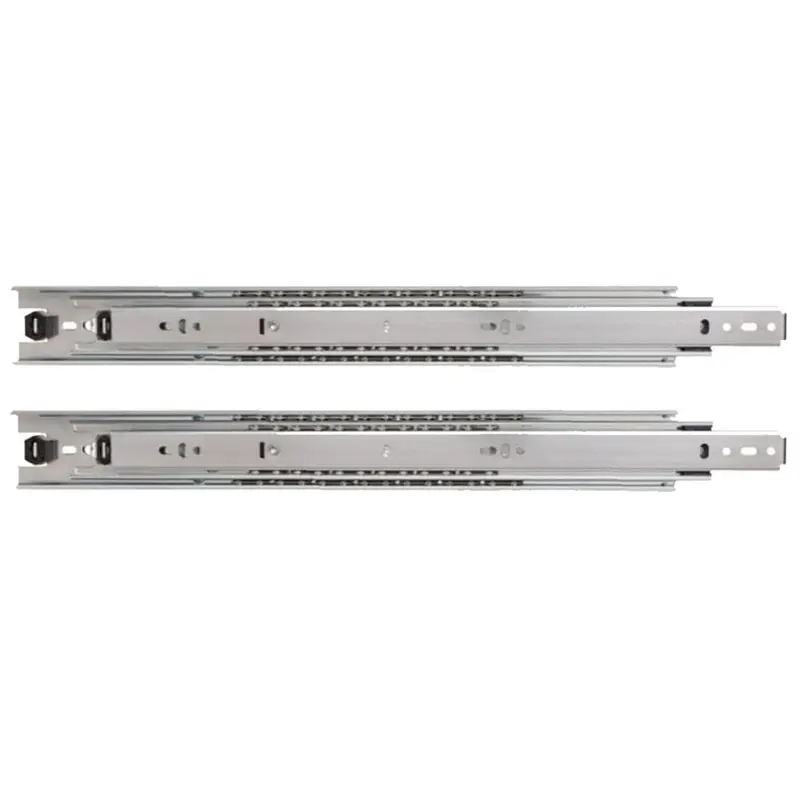

Sale! 22 in. Side Mount 200 lbs. Capacity Heavy-Duty Drawer Slides7.08 / 2 / 22
The 8810 Heavy-Duty Full Extension Drawer Slide is designed to accommodate wider and heavier drawers for today's challenging applications in the commercial, residential and educational markets. Recommended drawer slide applications include wood home or off
$49.00
-
$39.20
100% Happiness Backed or Your Money Back- Spend 30, Ship Free
- Love It or Return It Within 60 Days
100% Happiness Backed or Your Money BackDetails
The 8810 Heavy-Duty Full Extension Drawer Slide is designed to accommodate wider and heavier drawers for today’s challenging applications in the commercial, residential and educational markets. Recommended drawer slide applications include wood home or office furniture, store fixtures, medical carts, and residential kitchen cabinetry in addition to many other application options. As with all Knape & Vogt drawer slides, the 8810 is designed to meet or exceed ANSI performance standards established by BIFMA, BHMA and KCMA.
- 200 lbs. load rating
- 42 in. maximum drawer width
- Flat load rating: 100 lbs. (based on an 18 in. slide mounted in a 24 in. W drawer cycled 10,000-times)
- Hardware not included (recommend #8 or #10 x 5/8 in. Phillips flathead)
- Butterfly lever release disconnect
- 32 mm and traditional hole pattern
- For face frame mounting, the slide must be blocked out, see face frame diagram and do not use rear bracket
- Ball-bearing, telescopic drawer slide
- Full-extension travel
- Zinc-plated finish
- 3/4 in. side clearance
- Un-handed slide configuration
Features
| Item Weight | 7.08 |
| Slide System | Ball Bearing |
| Weight load per set (lb.) | 200 |
| Material | Steel |
| Finish Family | Zinc |
| Mount Type | Side Mount |
| Package Quantity | 2 |
| Returnable | 180-Day |
| Builders Hardware Product Type | Drawer Slides |
| Features | Heavy Duty |
| Drawer Slide Type | Side Mount |
| Product Height (in.) | 2.09 |
| Maximum Expandable Length (in.) | 22 |
| Slide Length (In.) | 22 |
| Product Width (in.) | 22 |
| Manufacturer Warranty | Limited Lifetime |
